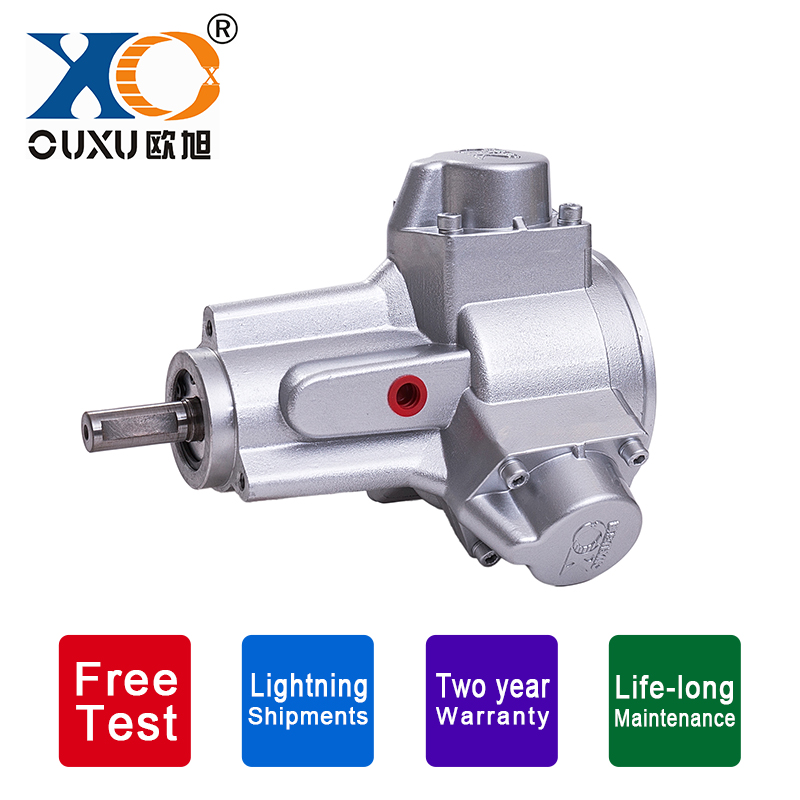

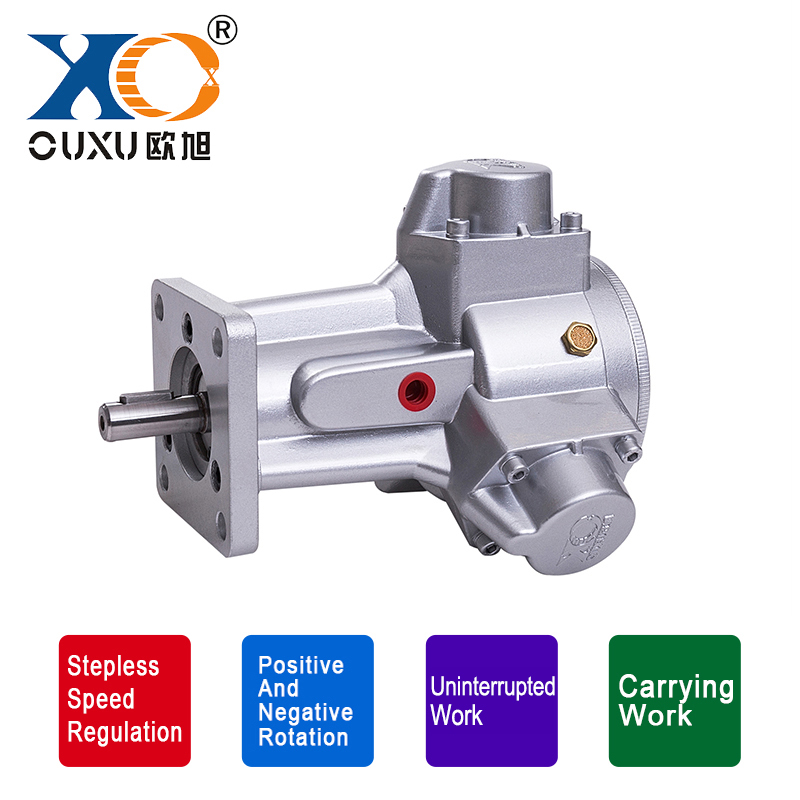

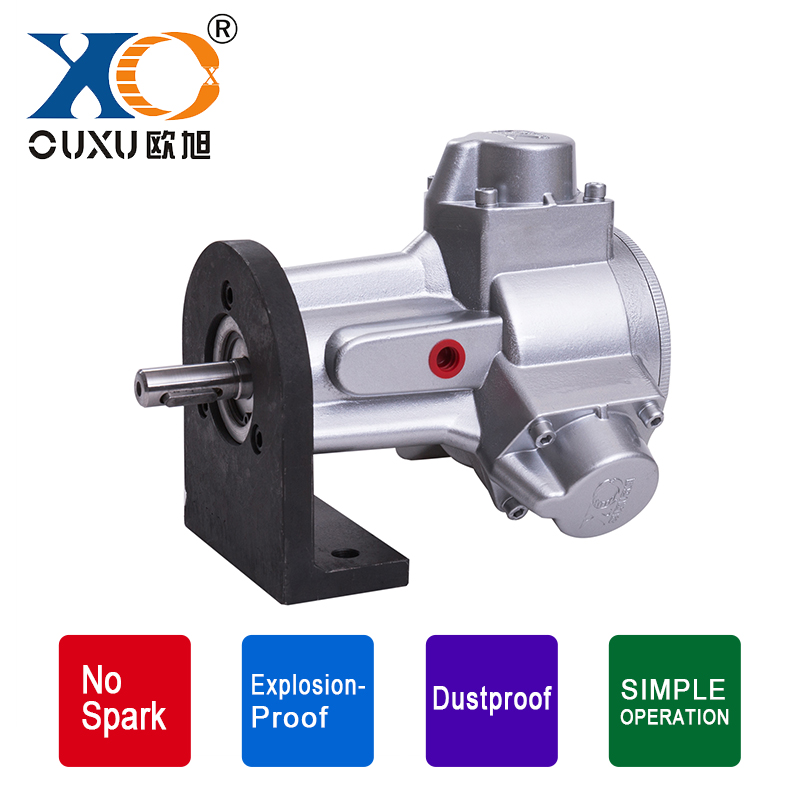

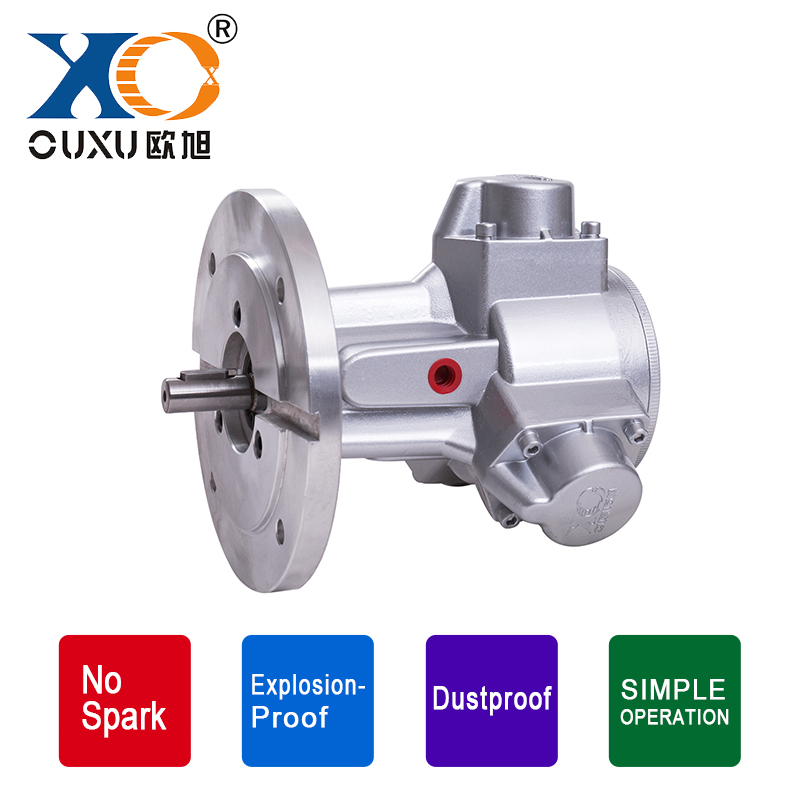

piston air motor|pneumatic motor
Please wait a moment...
  • piston air motor|pneumatic motor
  • 7
  • 1
  • 2
  • 3
  • 4

Characteristics of OUXU pneumatic air motors:


1. long time work is not hot, long service life, safety and explosion-proof.


2. the rotational speed is stepless, the speed is controlled by adjusting the size of air pressure or the
size of the air intake.


3. Overload protection, no failure due to overload.


4. With high starting torque, it can be started directly with load.


5. Can Positive inversion.



Product parameters

Piston Air Motors Data Download

Our company's  Case video in YouTube? DO CLICK.AIR MOTORS working video.I believe it's very helpful for you choose.

Model

Gear Ratio

Maximum efficacy

Idling Speed

(R.p.m)

Starting torque

Maximum Torque

Power

(HP)

Torque

Rotate Speed

(R.p.m)

Air Consumption

(L/min)

N.m

lbf.in

N.m

lbf.in

N.m

lbf.in

QMH010

1:1

0.1

0.7

6.2

1100

125

(4.375 CFM)

2200

1.12

9.9

1.4

12.3

5:1

3.5

30.9

220

440

5.6

49.5

7

61.9

10:1

7

61.9

110

220

11.2

99.1

14

123.9

20:1

14

123.9

55

110

22.4

198.2

28

247.8

30:1

21

185.9

36

72

33.6

297.3

42

371.7

40:1

28

247.8

28

56

44.8

396.4

56

495.6

50:1

35

309.7

22

44

56

495.6

70

619.5

70:1

49

433.6

16

32

78.4

693.8

98

867.3

90:1

63

557.5

12

24

100.8

892

126

1115

QMH025A

1:1

0.33

3

26.5

900

250

(8.75 CFM)

1800

4.8

42.4

6

53

5:1

15

132.7

180

360

24

212.4

30

265.4

10:1

30

265.5

90

180

48

424.8

60

531

15:1

45

398.25

60

120

72

637.2

90

796.5

20:1

60

531

45

90

96

849.6

120

1062

30:1

90

796.5

30

60

144

1274.4

180

1593

40:1

120

1062

23

45

192

1699

240

2124

50:1

150

1327.5

18

36

240

2124

300

2655

60:1

180

1593

15

30

288

2548.8

360

3186

70:1

210

1858.5

13

26

336

2973.6

420

3717

80:1

240

2124

11

22

384

3398

480

4248

100:1

300

2655

9

18

480

4248

600

5310

120:1

360

3186

7.5

15

576

5097.6

720

6372

160:1

480

4248

5.6

11.2

768

6796

960

8496

200:1

600

5310

4.5

9

960

8496

1200

10620

Model

Gear Ratio

Maximum efficacy

Idling Speed

(R.p.m)

Starting torque

Maximum Torque

Power

(HP)

Torque

Rotate Speed

(R.p.m)

Air Consumption

(L/min)

N.m

lbf.in





N.m

lbf.in

N.m

lbf.in

QMH050A

1:1

0.66

7

61.95

750

450

(15.75 CFM)

1500

11.2

99.1

14

123.9

5:1

35

309.75

150

300

56

495.6

70

619.5

10:1

70

619.5

75

150

112

991.2

140

1239

15:1

105

929.25

50

100

168

1486.8

210

1858.5

20:1

140

1239

37.5

75

224

1982.4

280

2478

30:1

210

1858.5

25

50

336

2973.6

420

3717

40:1

280

2478

18.75

37.5

448

3964.8

560

4956

50:1

350

3097.5

15

30

560

4956

700

6194

60:1

420

3717

12.5

25

672

5947.2

840

7434

70:1

490

4336.5

11

21

784

6938.4

980

8673

80:1

560

4956

9.4

18.75

896

7929.6

1120

9912

100:1

700

6195

7.5

15

1120

9912

1400

12390

120:1

840

7434

6.25

12.5

1344

11894

1680

14868

150:1

1050

9292.5

5

10

1680

14868

2100

18585

200:1

1400

12390

3.8

7.5

2240

19824

2800

24780

QMH075

1:1

0.75

10

88.5

550

525

(18.37 CFM)

1100

16

141.6

20

177

5:1

50

442.5

110

220

80

708

100

885

10:1

100

885

55

110

160

1416

200

1770

15:1

150

1327.5

36.6

73

240

2124

300

2655

20:1

200

1770

27.5

55

320

2832

400

3540

30:1

300

2655

18

37

480

4248

600

5310

40:1

400

3540

13.75

27.5

640

5664

800

7080

50:1

500

4425

11

22

800

7080

1000

8850

60:1

600

5310

9

18

960

8496

1200

10620

70:1

700

6195

8

16

1120

9912

1400

12390

80:1

800

7080

6.87

13.75

1280

11328

1600

14160

100:1

1000

8850

5.5

11

1600

14160

2000

17700

120:1

1200

10620

4.58

9.2

1920

16992

2400

21240

150:1

1500

13275

3,7

7.5

2400

21240

3000

26550

200:1

2000

17700

2.75

5.5

3200

28320

4000

35400

QMH100

1:1

1

18.71

165.5

380

560

(19.6 CFM)

760

29.94

264.96

37.42

331

5:1

94

831.9

76

152

150

1327.5

188

1663.8

10:1

187

1654.9

38

76

299

2646.1

374

3309.8

30:1

560

4956

12.7

25.5

896

7929.6

1120

9912

40:1

748

6619

9.5

19

1196

10584

1496

13239

50:1

935

8274.7

7.6

15

1496

13239

1870

16549

60:1

1122

9929

6

12

1795

15887

2244

19859

70:1

1309

11584

5.4

10.8

2094

18531

2618

23168

80:1

1496

13246

4.7

9.5

2393

21183

2992

26479

100:1

1871

16558

3.8

7.6

2992

26479

3740

33116

QMH400

1:1

5.5

19.1

169

2000

5400

(189 CFM)

3000

30.56

270.5

61.1

540.7

5:1

95.5

845.2

400

800

152.8

1352

191

1690

10:1

191

1690

200

400

305.6

2704

382

3380

15:1

286.5

2535

133

266

458

4053

573

5071

20:1

382

3380

100

200

611

5409

764

6761

30:1

573

5071

66

132

916

8106

1146

10142

40:1

764

6761

50

100

1222

10814

1528

13522

50:1

955

8451

40

80

1528

13522

1910

16903

60:1

1146

10142

33

66

1832

16213

2292

20284

80:1

1528

13522

25

50

2444

21629

3056

27045

100:1

1910

16903

20

40

3056

27045

3820

33807
