QMH050A
Please wait a moment...
  • QMH050A

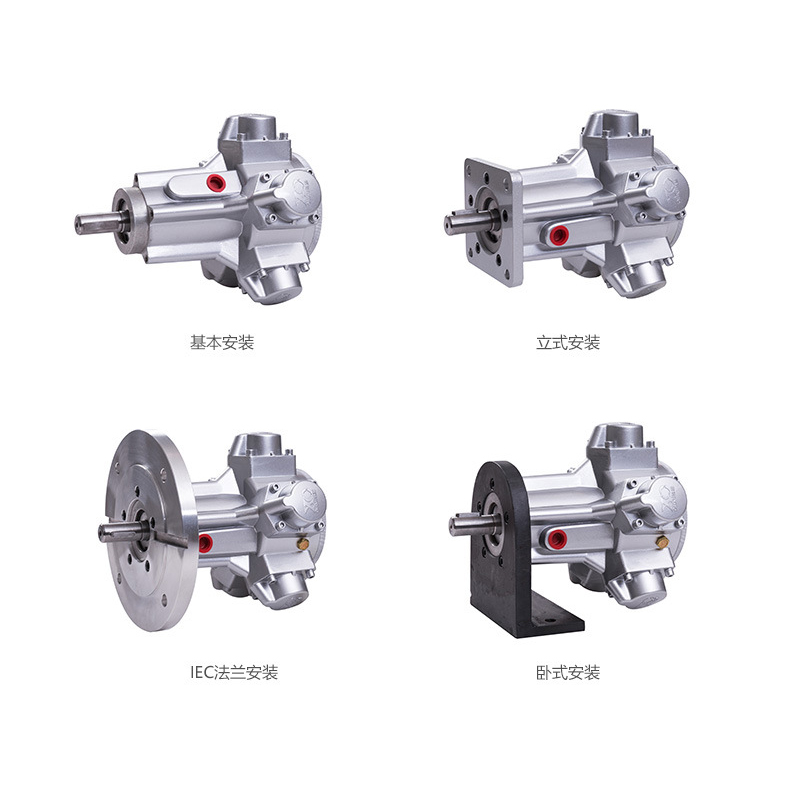

  • QMH五缸
  • Model:QMH050A

  • Power:0.66HP

  • Rotate Speed:750r/min(Stepless speed)

  • Idling Speed:1500r/min

  • Rated torque:7N.m

  • Starting torque:11.2N.m

  • Maximum Torque:14N.m

  • Air Consumption:460L/min

  • Pressure:0.6MPa

  • Weight:6.1Kg

  • Product parameters

    Piston Air Motors Data Download

    QMH050A VIDEO IN YOUTUBE

    Model:QMH050A piston air motor|pneumatic motor

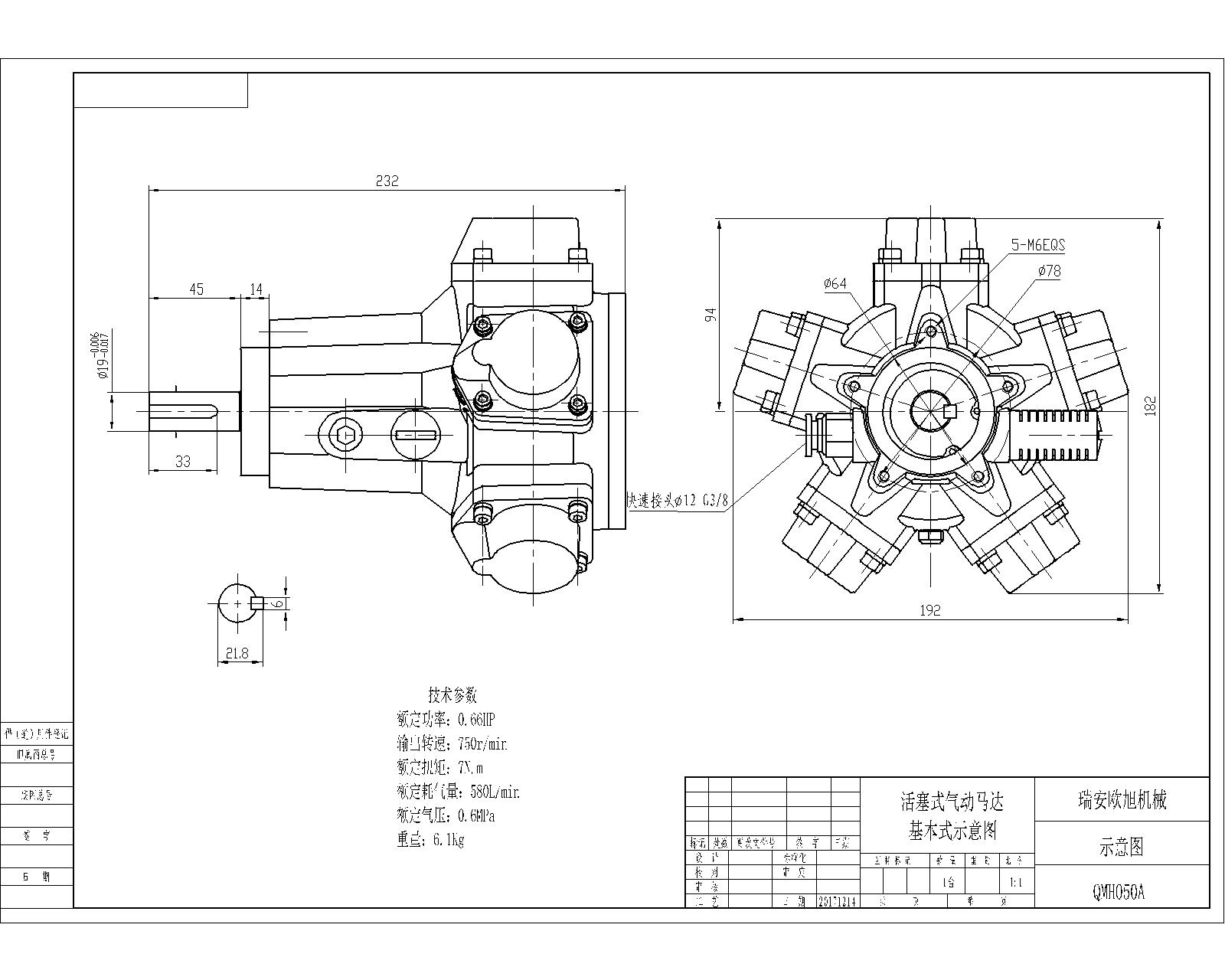

    Installation size:

    Operation Data:


    Model

    Gear Ratio

    Maximum efficacy

    Idling Speed

    (R.p.m)

    Starting torque

    Maximum Torque





    Power

    (HP)

    Torque

    Rotate Speed

    (R.p.m)

    Air Consumption

    (L/min)













    N.m

    lbf.in







    N.m

    lbf.in

    N.m

    lbf.in

    QMH050A

    1:1

    0.66

    7

    61.95

    750

    450

    (15.75 CFM)

    1500

    11.2

    99.1

    14

    123.9



    5:1



    35

    309.75

    150



    300

    56

    495.6

    70

    619.5



    10:1



    70

    619.5

    75



    150

    112

    991.2

    140

    1239



    15:1



    105

    929.25

    50



    100

    168

    1486.8

    210

    1858.5



    20:1



    140

    1239

    37.5



    75

    224

    1982.4

    280

    2478



    30:1



    210

    1858.5

    25



    50

    336

    2973.6

    420

    3717



    40:1



    280

    2478

    18.75



    37.5

    448

    3964.8

    560

    4956



    50:1



    350

    3097.5

    15



    30

    560

    4956

    700

    6194



    60:1



    420

    3717

    12.5



    25

    672

    5947.2

    840

    7434



    70:1



    490

    4336.5

    11



    21

    784

    6938.4

    980

    8673



    80:1



    560

    4956

    9.4



    18.75

    896

    7929.6

    1120

    9912



    100:1



    700

    6195

    7.5



    15

    1120

    9912

    1400

    12390



    120:1



    840

    7434

    6.25



    12.5

    1344

    11894

    1680

    14868



    150:1



    1050

    9292.5

    5



    10

    1680

    14868

    2100

    18585



    200:1



    1400

    12390

    3.8



    7.5

    2240

    19824

    2800

    24780

    Characteristics of OUXU pneumatic air motors:

    1. long time work is not hot, long service life, safety and explosion-proof.

    2. the rotational speed is stepless, the speed is controlled by adjusting the size of air pressure or the
    size of the air intake.

    3. Overload protection, no failure due to overload.

    4. With high starting torque, it can be started directly with load.

    5. Can Positive inversion.
